Features:

• High Performance, Standard Size, Multi Voltage Digital Servo
• High-Precision Steel Gears
• Full CNC Aluminium Hull Case
• High Quality Brushless Motor
• Dual Ball Bearing
• Slow Start
• Long Working Life
• 25T (Futaba Type) Spline
• JR style plug
• Waterproof
• Suitable for IMAC, Warbirds & Giant Scale Warbirds

Description:

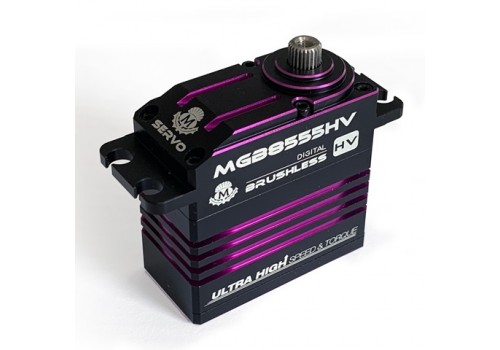

The MGB8555HV is a waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.

MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

Specifications:

• Dead band: 2µs default
• Working frequency: 1520µs / 330hz
• Motor: Brushless Motor
• Gearset: Steel
• Spline: 25T
• Operating Voltage: 5.0 ~ 8.4V
• Operating Speed (5.0V): 0.20sec/60°
• Operating Speed (6.0V): 0.17sec/60°
• Operating Speed (7.4V): 0.13sec/60°
• Operating Speed (8.4V): 0.11sec/60°
• Torque (5.0V): 32.6kg.cm
• Torque (6.0V): 39.1kg.cm
• Torque (7.4V): 48.2kg.cm
• Torque (8.4V): 54.7kg.cm
• Dimensions: 40 x 20 x 39.1mm
• Weight: 85g
• Connector Wire Length: 310mm
• Bearing: 2BB
