VENTUS 2cx is supplied in ARF verzion, its Coated with foil Oracover®.

The model has an operated ailerons (using 2 servos), flaps (4 servos), air brakes (2 servos) elevator (1 servo), rudder (1 servo), tow hook (1servo STD), retract gear (1 servo).

De-luxe version:

• completely assembled and deposed model
• The fuselage has inbuilt connectors and cables for aileron servos. The landing and air brakes, clutch housing of the wing, cabin including scale modeling closing, instrument panel and seats are also built in the fuselage. The rudder is attached to the fuselage with a control horn and bowden.
• It contains the locking system of the wings against ejection. The tow hook, retractable landing gear on the tail wheel are also included.
• The wing has mounted ailerons, flaps, air brakes, including servo cables, connecting cables to the fuselage and the system of locking the wings against the collateral eject.
• high quality vinyl stickers are stuck on the model


 This model is completely made in the Czech Republic. The spare parts are in stock.

Technical specification:

Suitable setup for take off from the take-off dolly:

motor- Xmotor XM5050EA-12 V3 Dualsky ( item No.5050EA-12) controller: SPIN 75 PRO OPTO (item No. JSP-75-O) receiver accu (depending on the servos used - 4.8V or 7.4V) spinner - GM Scale 44,5/6   (item No. č 0200192) building service (cutting the nose of the vENTUS fuselage for 44,5mm GM spinner + gluing the motor mount, item No. 020SERVISVENTUS) propeller - folding blades GM 14x8" (item No. 020GM14.8W) accu – LiPol 5S sailplane take-off dolly I - (item No. 020D01)

The de luxe ARF kit contents:

• fiberglass, white colored fuselage with sliding cabin, fiberglass seat and dashboard panel, these parts are already instaled
• The wing : the center of the wing is made of polystyrene, coated with a veneer, reinforced with glass fiber and carbon flange. The construction is supplemented by beams which are connecting the top and bottom of the cover. The enclosure for mounting winglets, winglets, wing flaps and the brake shields are also installed. The wing is coated by Oracover^® foil.
• white through-colored fiberglass elevator
• white through-colored fiberglass rudder
• white through-colored fiberglass wing tip
• fiberglass frame of the cabin with glued clear cabin. The maquette window and closing is also installed
• building instructions
• iron wing joiner
• small accessories

BUILDING MANUAL:

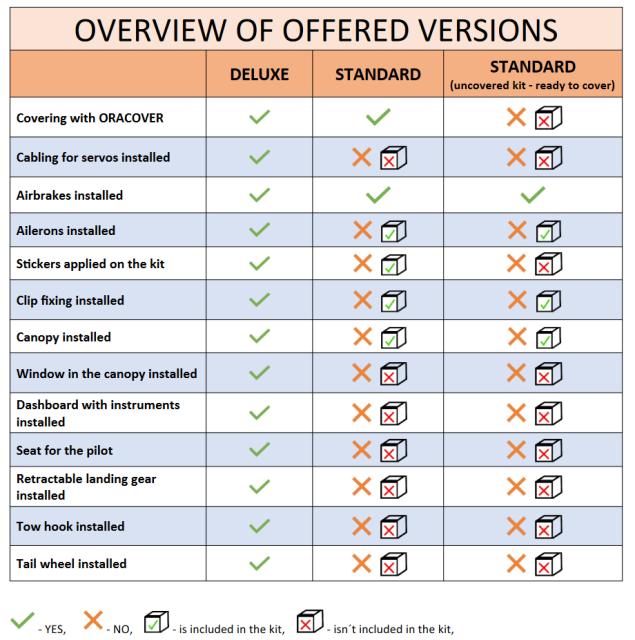

OVERVIEW OF OFFERED VERSIONS:
