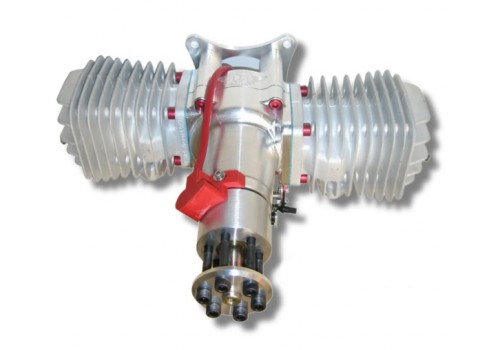

The well proven original DA-100 now even lighter and stronger !
We couldn't resist adding some new features like a new reed cage, reed valve and a lighter crankcase to our 100cc engine. The result: The DA-100L is lighter, has an improved midrange, and more power.
All engines come with ignition, prop washer, and prop bolts.
More info on links below :
3 view drawings of 100L
Specifications
- Displacement: 6.10 ci (100 cc)
- Output: 9.8 hp
- Weight: 5.57 lbs (2.53 kilos)
- Bore: 1.6771 in (42.6 mm)
- Stroke: 1.3779 in (35 mm)
- Length: 6.5 in (162.5 mm)
- Fuel Consumption: 2.5 oz/min @ 6,000 RPM
- Warranty: Three year
- Bolt Circle: 29mm
- Prop Bolt: (6) 5mm
Features
- Three crank bearings with long spacing between front bearings.
- Four petal reed valve, bottom induction.
- Desert Aircraft, auto advance, electronic ignition.
- Walbro Carburator
- Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
- CNC milled, 7075 aluminum alloy crankcase.
- Low vibration.
- Long rod to stroke ratio.
- Aerobatic power curve.
Recommended Props
2-Blades
- 26x12
- 27x10
- 28x10
3-Blades
- 24x12W
- 25x12S
- 26x12
- 26x12n
Desert Aircraft - DA 100L
- Brand: Desert Aircraft
- Product Code: Desert Aircraft - DA 100L
- Availability: PRE-ORDER
- AerobatX Product ID: 3807
-
£1,214.00
- Ex Tax: £1,011.67
Available Options
