About T-MOTOR AT2814 3D F3A Fixed Wing Long Shaft Brushless Motor

T-Motor AT2814 is specially designed for 1.3-1.4kg flyingweight 3D, F3A and UAV fixed-wing aircraft, with biggest thrust of 2.6kg.

It can supports 3-4s lipos with a maximum power of 800w. Recommend with T-Motor T12*6/13*6.5propeller and T-Motor AT40A-55A ESC

Hi-end motor suitable for larger airplanes of the Outdoor category. The motor has a mounting cross, which makes it easier to mount on the airplane. The motor has 10 cm long cables.

The AT series of motors uses modern materials used in industry-driven areas. Hand made high temperature enameled wire for excellent characteristics of fireproof, anti-aging, greatly extend the working lifetime of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit helps improving motor performance. Cutom bearings are imported from Japan to improve the quality of the motor and prolong its life to ensure smooth and stable flight with a longer flying time.

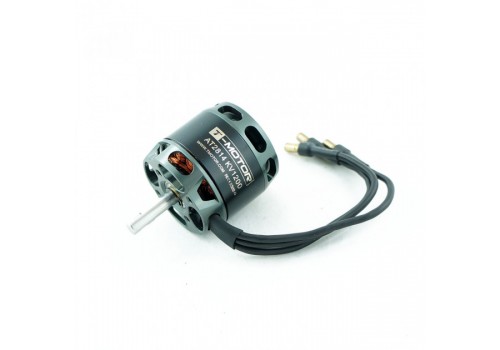

The image is illustrative. We supply the motor with the Kv value given in the product description.

Key Features

• Size: 2814
• Kv: 1200
• Weight: 108g (including cable)
• Configuration: 12N14P
• Cables: 10cm

Package Includes

• 1x Motor
• 1x Motor mount
• 1x Propeller adapter
• 1x Set of screws
